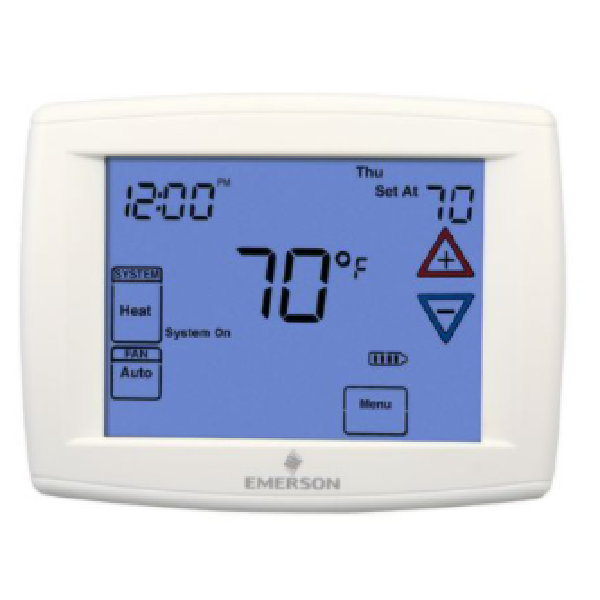

Emerson 1F95-1277 Blue Series 12" Touchscreen Thermostat

Features:

• Universal models quickly configure for single stage, multi-stage or heat pump
• Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
• Humidification/dehumidification control
• Commercial model offers occupied damper or economizer control
• Keypad lockout and set-point temperature limits

Specifications:

• Program Options - Programmable - 7 Day, 5+1+1 Day or Non-Programmable
• Program Periods Per Day Options - 4, 2, None
• Stages Heat/Cool - Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 3H/2C; 4H/2C on Dual Fuel systems when using an Outdoor Remote Sensor
• Style - Horizontal
• Typical Applications - Gas/Oil/Electric
• Terminals - RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -
• 3-Wire Zone Valve Connections - Yes
• Millivolt Compatible - Yes
• Economizer Connections - No
• Humidity Control - No
• Heat Pump Dual Fuel Control - Yes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
• Remote Sensor Options - 1 Indoor or Outdoor
• Power Source - Battery, Hardwire, Power Stealing
• Auto Changeover (Heat/Cool) - Yes
• Fan Option - Auto, On, Programmable Fan or Comfort Circulating Fan
• Filter Change Reminder - Yes
• Energy Mgt. Recovery/Early Start - Yes
• Keypad Lockout - Total or Partial
• Set-Point Temperature Limits - Yes
• Display Type - 12 square in
• Blacklight - Key Press or Continuous with Common Wire
• Voltage - 20 to 30 Vac 50/60 Hz
• Amp Rating - 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range - 45 to 99°F (7 to 37°C)
