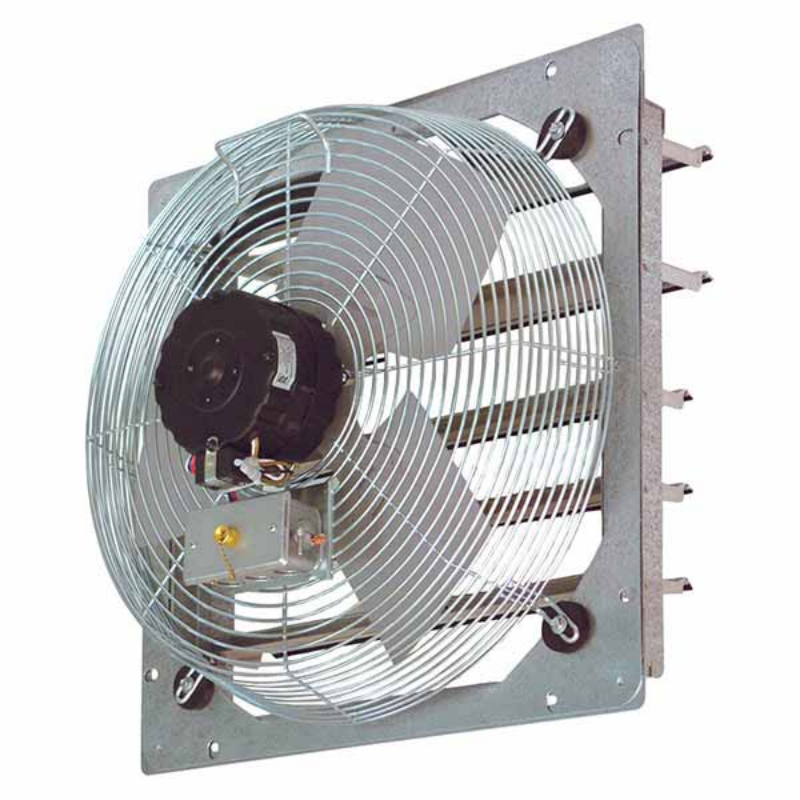

Continental Fan CFM SEF-30 30" Shutter Mount Wall Exhaust Fan, 3080/3950 CFM.
Overview:
SEF Shutter Mount Wall Exhaust Fans are designed for through-the-wall general ventilation applications. They provide a compact, cost effective commercial ventilation solution for warehouses, equipment rooms, factories, machine rooms, and more. The shutter mount configuration assures easy installation. These multi-speed axial fans feature aluminum fan blades in a galvanized frame and a plated steel wire guard. SEF fans are available in diameters from 10″ through 30″ with direct drive capacities ranging to 3,950 cfm.
Features & Benefits:
- Suitable for through the wall installation
- 2 or 3 speed operation, pull chain switch
- 120 VAC single phase 60 Hz operation
- UL/CSA approved motor
- Totally enclosed permanently lubricated
- External junction box
- Aluminum fan blades in galvanized frame
- Plated steel wire guard
- Mounts directly to inside wall
- Eliminates need for external framing
- Diameters range from 10″ to 30″
- Direct drive capacities to 3,950 cfm
Applications:
- Warehouse ventilation
- Equipment room ventilation
- General ventilation
- Factory ventilation
- Hydroponics
Airflow Performance:

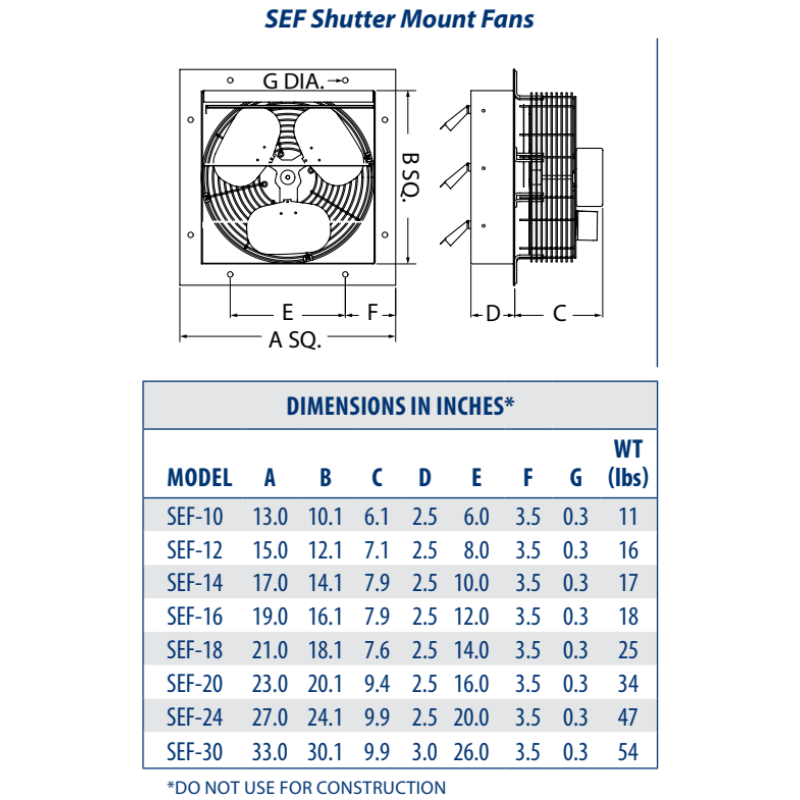

Dimensional Data:
Technical Downloads:
- CFM SEF-30: Brochure
- CFM SEF-30: Dimensional Drawing
- CFM SEF-30: Installation
