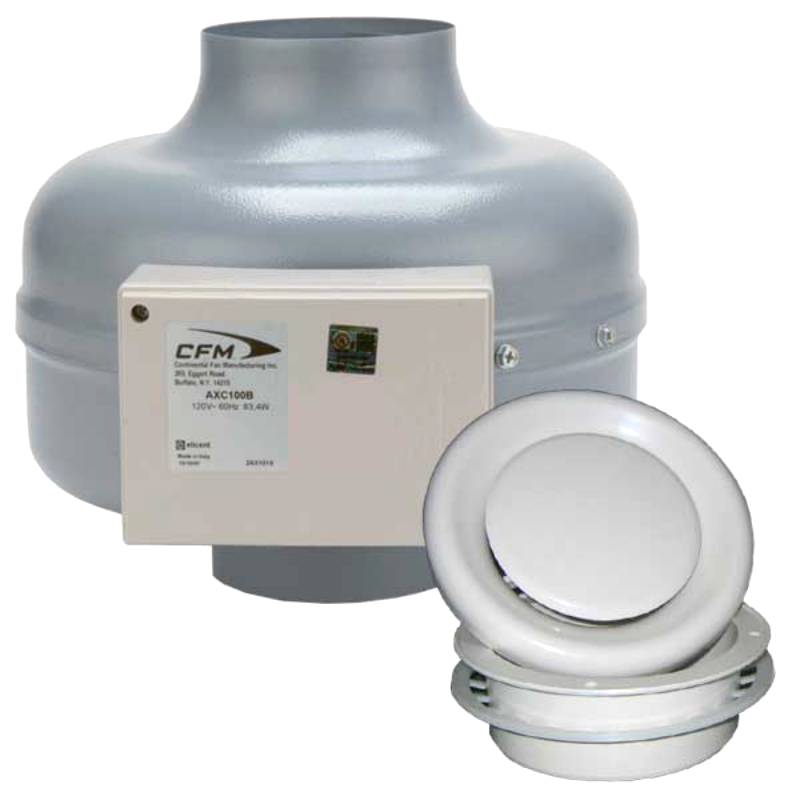

CFM RG100-ES AXC 4" Centrifugal In-Line Bathroom Fan Kit w/ Adjustable Grille.
Product Overview:
Attack moisture at its source. Choose the easy-to-install adjustable grille bathroom ventilation fan kit that features the AXC in-line duct fan and our attractive adjustable ventilation grilles. AXC in-line duct fans provide exhaust that is two to four times greater than traditional bathroom fans. The remote mounted design is suitable for direct shower ventilation and for use with multiple ventilation points. All adjustable grilles come with a built-in backdraft damper. Vary airflow to suit your needs.
Adjustable grille bathroom ventilation fan kits are available with one or two ventilation points.
Features & Benefits:
- Remote mounted in-line duct fan design
- Heavy-gauge, drawn steel housing with baked epoxy finish
- Quiet, powerful, compact bathroom ventilation fan
- Exhaust is two to four times greater than traditional bathroom fans
- Suitable for direct shower ventilation
- Suitable for use with multiple ventilation points
- Designed to handle long duct runs
- May be mounted in any position
- Five year warranty
RG Bathroom Ventilation Kits Include:
- AXC remote mount in-line fan
- Mounting brackets
- Adjustable grille/collar
- x3 Clamps
Airflow Performance (CFM) for AXC Fans
| MODEL |
WATTS |
RPM |
0" SP |
0.2" SP |
0.4" SP |
0.6" SP |
0.8" SP |
1.0" SP |
1.2" SP |
|---|---|---|---|---|---|---|---|---|---|
| AXC100A-ES | 43.3 | 2580 | 147 | 130 | 107 | 82 | 57 | 34 | 11 |
| AXC150A-ES | 46.8 | 2390 | 235 | 190 | 148 | 97 | 44 | ||
| AXC200A-ES | 84.5 | 2500 | 368 | 300 | 234 | 184 | 149 | 114 | 70 |
Helpful Tips for Bathroom Ventilation Fans:
| ROOM SIZE | FAN MODEL | AVAILABLE KITS |
|---|---|---|
| Up to 100 sq. ft. | AXC100A-ES: 4" fan, 147 cfm | RG100-ES |
| Up to 150 sq. ft. | AXC150A-ES: 6" fan, 235 cfm | RG150A-ES DX150A-ES |
| Over 150 sq. ft. | AXC200A-ES: 8" fan, 368 cfm | DX200A-ES |
- AXC fan mounts easily to attic joists with the exclusive Continental Fan mounting bracket.
- Always use insulated duct in unheated spaces.
- When direct venting a shower, or if noise is a significant factor, use insulated flexible duct to reduce condensation and/or noise levels.
- Add a DFC digital fan control for smart control technology and energy savings.
- View our full line of dampers, controls, and accessories. to compliment an installation.
How Much Airflow Is Required:
HVI (Home Ventilating Institute, HVI.org) recommends ventilation rates based on 8 air changes per hour. For most bathrooms this works out to 1 cfm per square foot of area, with a minimum of 50 cfm.
- A bathroom less than 100 square feet:
- Calculate 1 cfm per square foot of floor area. A minimum of 50 cfm is the required ventilation rate.
- A bathroom larger than 100 square feet:
- To calculate the proper ventilation rate, add the cfm requirement for each fixture; toilet 50 cfm, shower 50 cfm, bathtub 50 cfm, jetted tub 100 cfm. Note: For proper sizing, the static pressure (SP) needs to be calculated.
Technical Downloads:
- CFM RG100-ES: Brochure
- CFM RG100-ES: Dimensional Drawing
- CFM RG100-ES: Installation
