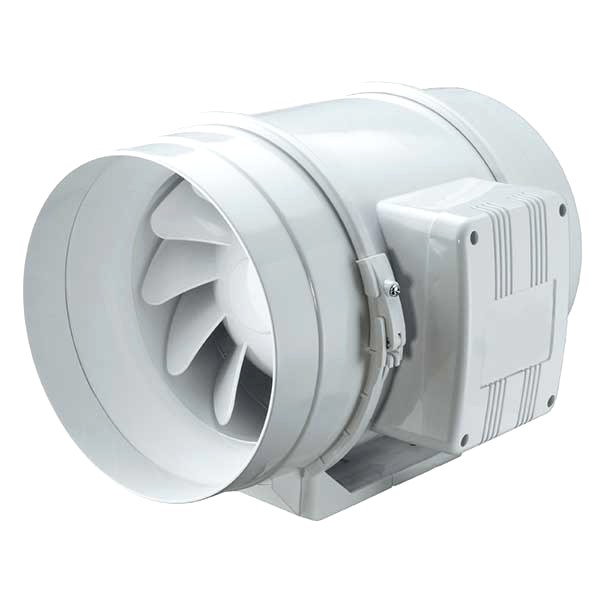

CFM MFT300 12" Mixed Flow In-Line 2-Speed Duct Fan 1051/830 CFM

CONTINENTAL FAN CFM MFT300 12" Mixed Flow In-Line 2-Speed Duct Fan 1051/830 CFM.

Overview:

MFT Mixed Flow In-Line Fans are designed for residential and light commercial ventilation applications.  These compact, powerful and quiet fans feature a durable UV resistant plastic housing.  Additionally, the two speed motor is energy efficient.

MFT fans may be used to supply or exhaust air. They are capable of moving airflow through long or complex duct runs. As a result, they provide an ideal solution for areas that are hard to heat or cool.

Features & Benefits:

• UV and corrosion resistant, durable plastic housing
• Powerful, compact and quiet mixed flow impeller
• Easy to install – mounting brackets included – simple maintenance
• May be mounted in any position
• Ideal for long duct runs
• Fans may be used for supply or exhaust air
• Suitable for air temperatures up to 140 F
• Optional pre-wired with 120V power cord (MFT-C)
• Energy efficient two speed motor
• Single-phase asynchronous motor; IPX4 protection
• Permanently lubricated ball bearing motor for maintenance-free operation
• Automatic reset thermal overload protection
• Fan and motor are precision balanced for quiet and vibration-free operation
• Easy access to motor and impeller, no need to dismantle duct work
• Available in duct diameters from 4″ thru 12″
• Airflow capacity up to 1,051 cfm

Applications for MFT Mixed Flow In-line Fans:

• Residential

  • Bathroom exhaust
  • Whole house ventilation
  • Duct boosting
  • General kitchen exhaust
  • Laundry room exhaust
  • HRV / ERV boosting



• Commercial

  • Conference room exhaust
  • Computer rooms
  • Humidity and moisture removal
  • Powered make-up air
  • Equipment and spot cooling
  • Hair  and nail salons

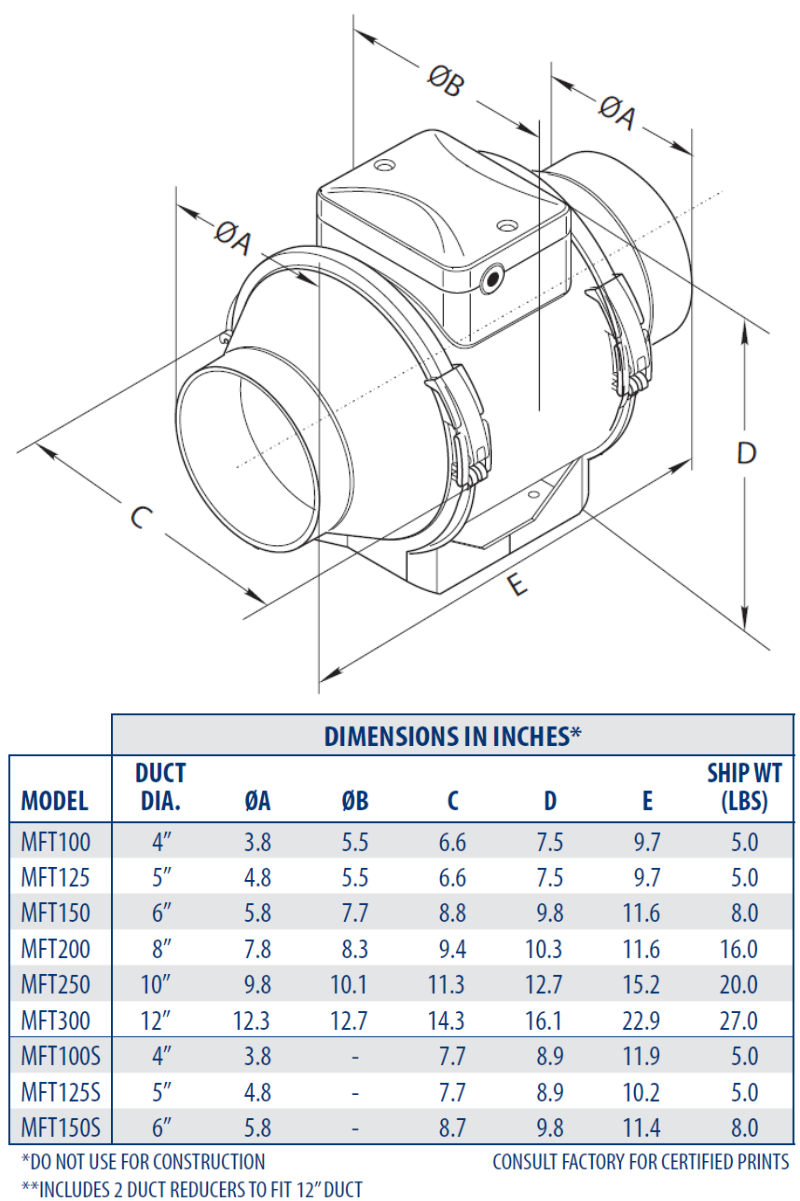

Dimensions:

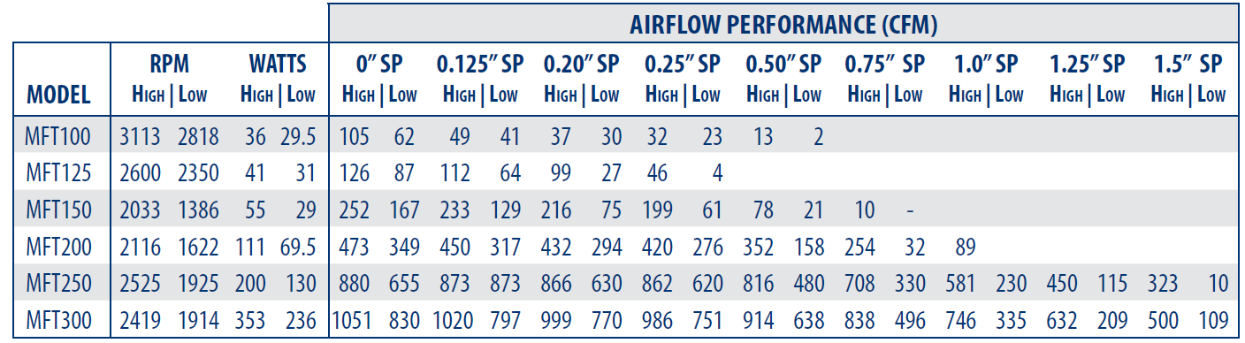

Performance Data:

Technical Downloads:

• CFM MFT300: Brochure
• CFM MFT300: Dimensional Drawings
• CFM MFT300: Installation Instructions
