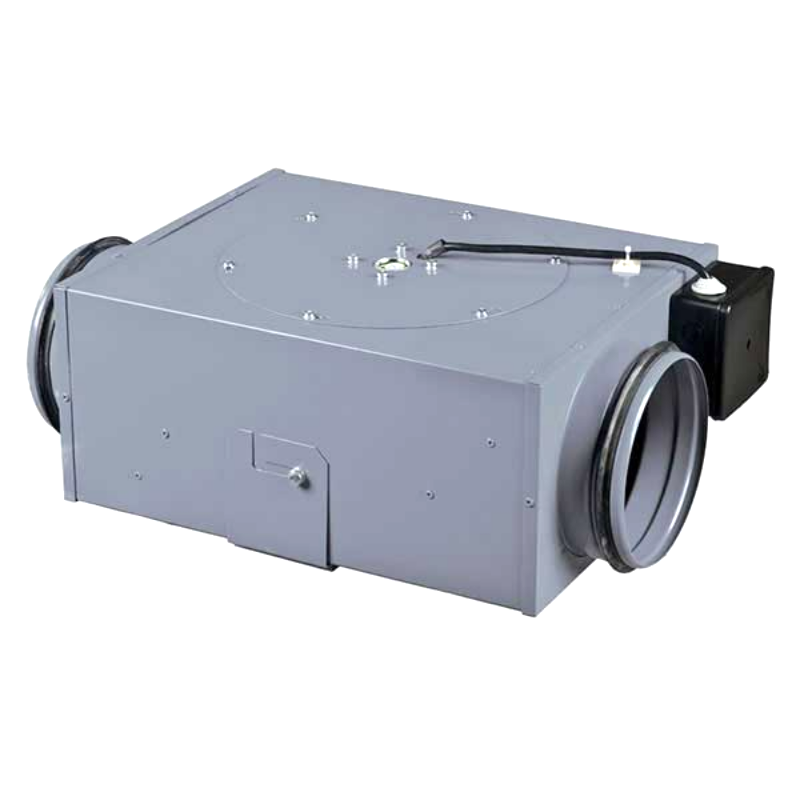

CONTIENENTAL FAM CFM MBI100 4" Centrifugal In-Line Low Profile Duct Fan 147 CFM.
Product Overview:
Features & Benefits:
- Steel housing with corrosion resistant finish
- 120V operation (also available in 220V; contact factory for details)
- Removable fan cover for easy maintenance
- Powerful, compact and quiet low profile fan
- Easy to install – mounting bracket included
- Multiple source ducting options
- Fans may be used for supply or exhaust air
- Ideal for long duct runs
- Suitable for air temperatures from -13 F to 140 F
- Energy efficient – speed controllable (optional solid state speed control)
- Exceptionally quiet and efficient Backward-curved (BC) centrifugal fan impeller
- Single-phase asynchronous external rotor motor
- Permanently lubricated ball bearing motors for maintenance-free operation
- Automatic reset thermal overload protection for additional safety
- Precision balanced fan and motor for quiet and vibration-free operation
- Easily accessible, external junction box with pre-wired capacitor
- Available in 4″, 5″ & 6″ duct diameters
- Airflow capacity up to 290 cfm
Applications:
MBI fans can solve many air moving problems. They are designed to boost airflow through long or complex duct runs. As a result, they provide ideal solutions for areas that are hard to heat or cool.
- Apartment / multi-unit housing ventilation
- Condominium ventilation
- Whole house ventilation
- Medium and large commercial facilities:
- Offices
- Restaurants
- Garages

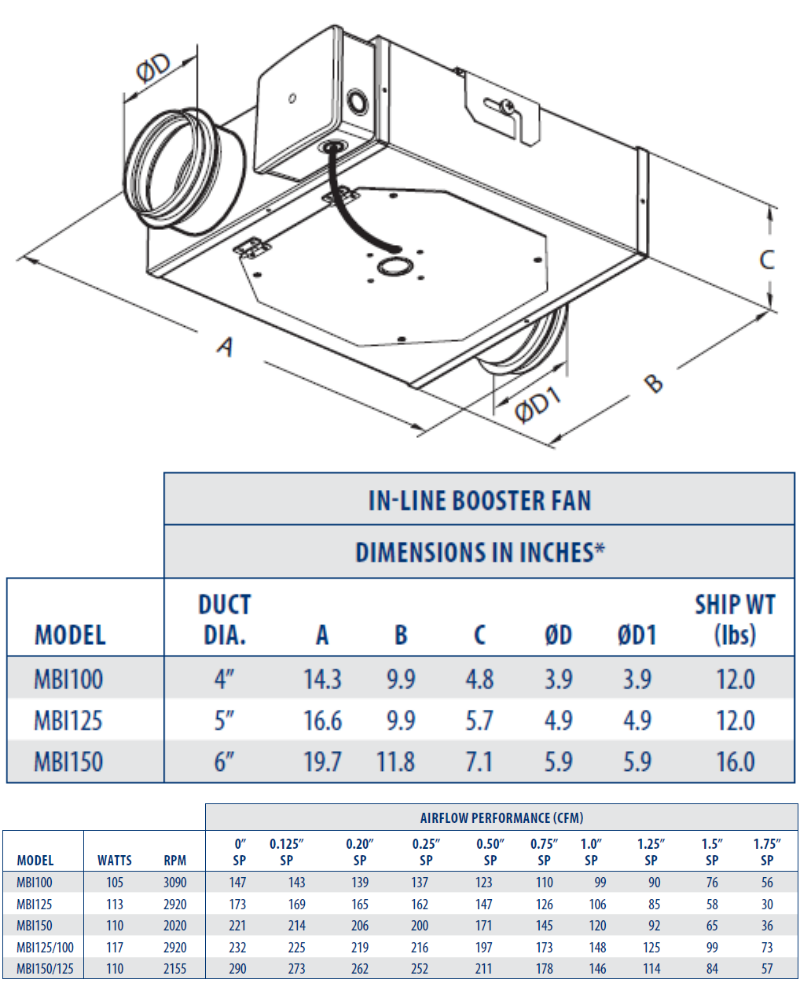

Technical Data:
Technical Downloads:
- CFM MBI100: Brochure
- CFM MBI100: Dimensional Drawing
- CFM MBI100: Installation
