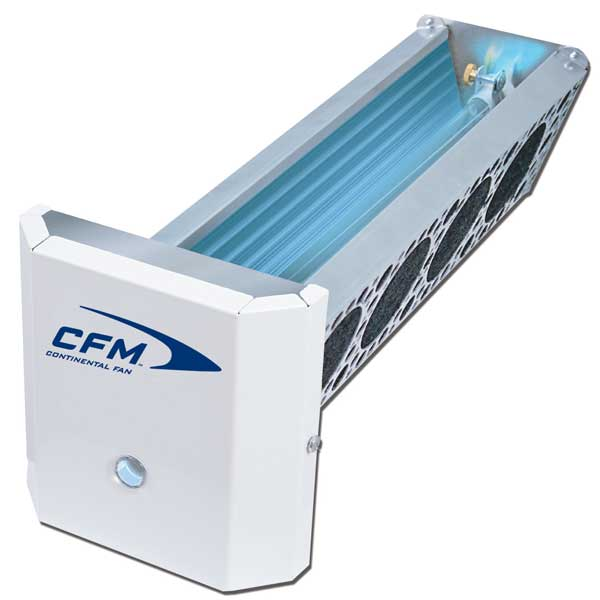

CFM CX-PRO Whole House UVGI (Ultraviolet Germicidal Irradiation) Ducted Air Purifier w/ UVC Light.
Product Overview:
CX-Pro combines three powerful purification forces into the CX-Pro whole house air purifier that is ozone free. The high-intensity UVC germicidal lamp neutralizes viruses, bacteria and mold. The patented design uses a Photocatalytic Oxidation (PCO) process to neutralize odors and toxic VOCs into benign constituents and an activated carbon adsorption media to trap odors and toxic chemicals. In as little as two hours, the CX-Pro neutralizes 93.6% of airborne germs and 80% of odors and VOCs.
Features & Benefts:
- High-intensity, UVC germicidal lamp
- Aluminum substrate & carbon media never need replacing
- Easily installs in an HVAC duct system
- Install in supply duct, in return plenum or above AC coil
- Irradiates AC coil of toxic organics and biofilm
- Ozone free
- Pre-wired 120V power cord; 230V option
- 2-year lamp efficiency
- Limited 10-year warranty

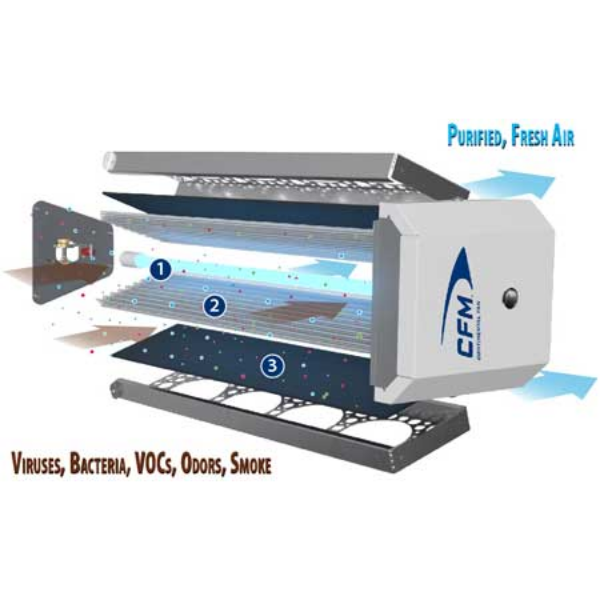

CX-PRO DESIGN:
-
UVC Germicidal Lamp
-
Neutralizes airborne microbes such as viruses, bacteria & mold
-
Irradiates AC coil of toxic organics and biofilm
-
Catalytic Aluminum Substrate
-
Breaks down VOCs & biologicals with its patented PCO process
-
Activated Carbon Adsorption Media
-
Traps odors & toxic chemicals with its activated carbon surface
| Model | CX-Pro |
|---|---|
| In-Duct Dim. | 17.75 in. |
| Sizing | 1.5-5.0 tons |
| Pressure Drop | 0.02 in.wg |
| Surface Area | 3,500 sq. in. |
| Voltage | 120/230 V |
| UV Range (n.m.) | 254 n.m |
| Lamp | 50 watts |
| Lamp Intensity | 135 μW/cm²@1m |
| Weight | 3.6 lbs |
| CX-Pro Replacement Parts | |
|---|---|
| CX-PRO-RL | 17.5" UVC Lamp |
| CX-PRO-TB | Ballast 120V |

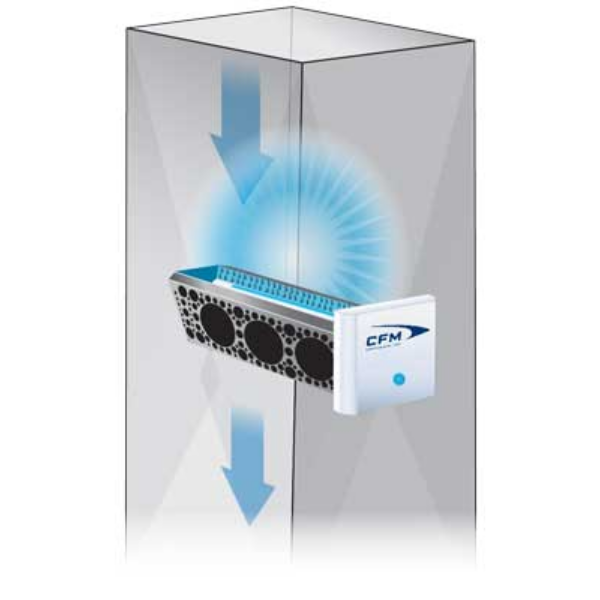

How the CX-PRO Whole House Air Purifier Works:
As indoor air circulates through the duct system, it passes through the treatment zone of the CX-Pro whole house air purifier. The UVC germicidal lamp neutralizes an organism’s DNA, preventing it from replicating. The catalytic aluminum substrate, which is permanently bonded with titanium dioxide, maximizes the exposure of biologicals and toxic gases. The PCO process occurs when the catalyst is excited by the irradiation of UVC light, deactivating microbes and deconstructing molecular bonds. While the carbon adsorption media traps odors and toxic impurities, the PCO process catalyzes impurities and refreshes the carbon adsorption media.
Technical Downloads:
- CFM CX-PRO: PDF BROCHURE
- CFM CX-PRO: INSTALLATION INSTRUCTIONS
