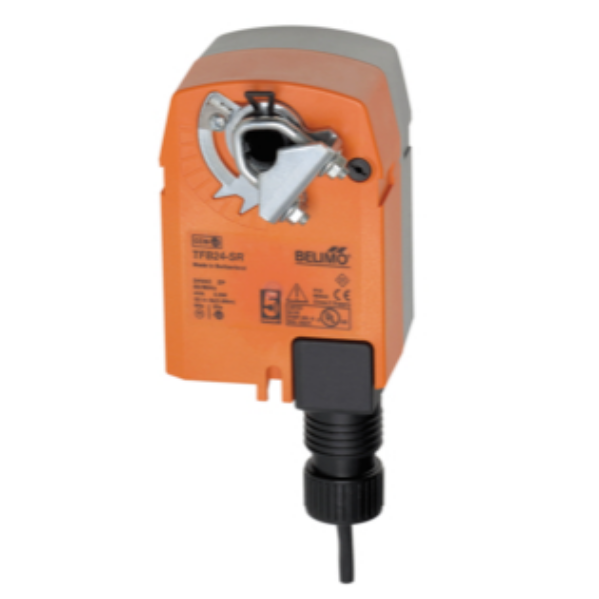

Belimo TFB24-SR Damper Actuator, 22 in-lb [2.5 Nm], Spring Return, AC/DC 24 V, 2... 10 V, Modulating
Technical Specifications:
Actuator Type: Spring Return
Angle of Rotation: 95
Control Type: DC 2... 10V
Degree of Protection: IP42, NEMA 2, UL Enclosure Type 2
Direction of Rotation (Fail-Safe): Reversible With cw/ccw Mounting
Electrical Connection: Cable
Power Consumption (Holding): 1 W
Power Consumption (Running): 2 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 95s
Safety Function: YES
Shaft Diameter: 1/4...1/2" Round, Centers on 1/2"
Torque: 22 in-lb [2.5 Nm]
Voltage AC/DC: 24 V
Product & Technical Literature:
