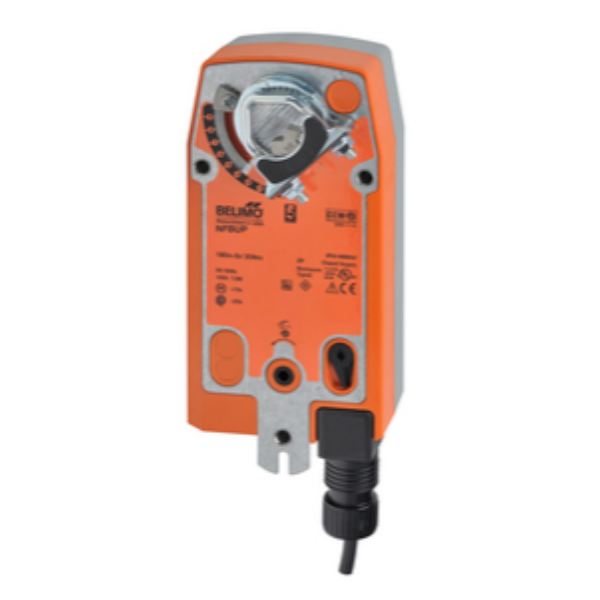

Belimo NFBUP Damper Actuator, 90 in-lb [10 Nm], Spring return, AC 24 V...240V / DC 24... 125V, On/Off

BelimoSKU: BEL-NFBUP

Price:
Sale Price$ 6,437.00 MXN
Description
Belimo NFBUP Damper Actuator, 90 in-lb [10 Nm], Spring return, AC 24 V...240V / DC 24... 125V, On/Off

Belimo NFBUP Damper Actuator, 90 in-lb [10 Nm], Spring return, AC 24 V...240V / DC 24... 125V, On/Off

Technical Specifications:

Actuator Type: Spring Return

Angle of Rotation: 95

Control Type: On/Off

Degree of Protection: IP54, NEMA 2, Enclosure Type 2

Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting

Electrical Connection: Cable

Manual Override: 5mm Hex Crank (3/16" Allen), Supplied

Power Consumption (Holding): 2.5 W

Power Consumption (Running): 6 W

Running Time (Fail-safe): <20 s

Running Time (Motor): 75 s / 90°

Safety Function: YES

Shaft Diameter: 1/2...1.05" Round, Centers On 1/2" And 3/4" With Insert, 1.05" Without Insert

Torque: 90 in-lb [10 Nm]

Voltage AC/DC: AC 24... 240V / DC 24... 125V
