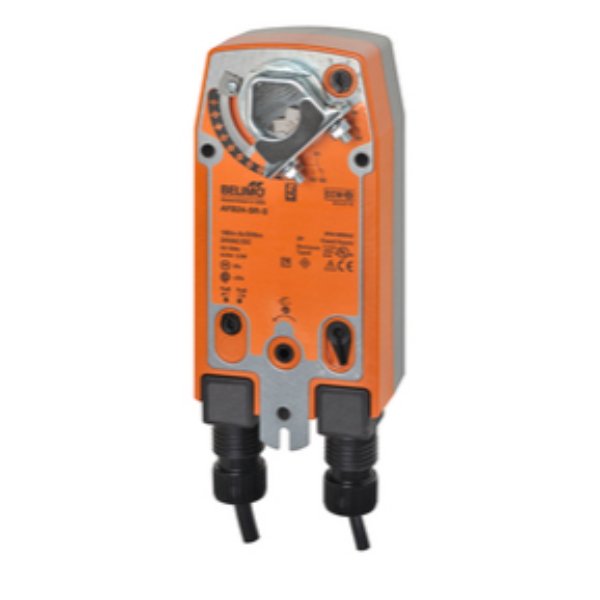

Belimo AFB24-SR-S Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2..10V, 2 x SPDT, Modulating

BelimoSKU: BEL-AFB24-SR-S

Price:
Sale Price$ 10,840.00 MXN
Description
Belimo AFB24-SR-S Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2..10V, 2 x SPDT, Modulating

Belimo AFB24-SR-S Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2..10V, 2 x SPDT, Modulating

Technical Specifications:

Actuator Type: Spring return

Angle of Rotation: 95

Control Type: DC 2... 10 V

Degree of Protection: IP54, NEMA 2

Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting

Electrical Connection: Cable

Power Consumption (Holding): 3 W

Power Consumption (Running): 5.5 W

Running Time (Fail-safe): <20 s

Running Time (Motor): 95 s / 90°

Safety Function: YES

Shaft Diameter: 1/2...1.05" Round, Centers On 1/2" And 3/4" With Insert, 1.05" Without Insert

Torque: 180 in-lb [20 Nm]

Voltage AC/DC: AC/DC 24 V

Product & Technical Literature:
