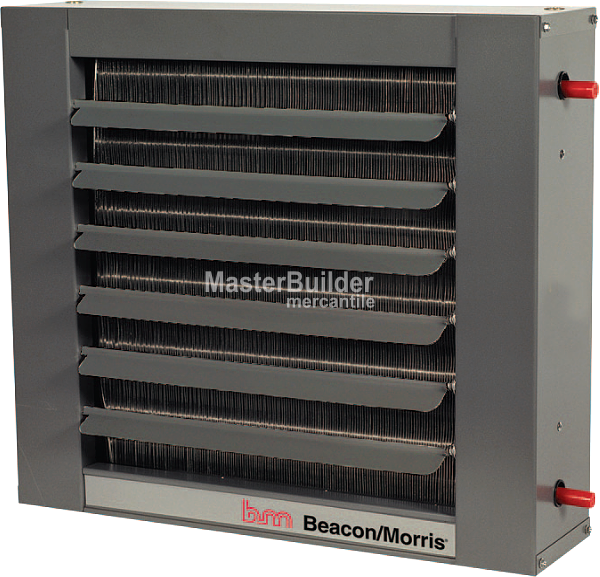

Beacon-Morris HB136A Horizontal Hydronic Unit Heater, 35,900 BTU/Hr.

Beacon MorrisSKU: MES-HBA136

Price:
Sale Price$ 33,558.00 MXN
Description

Beacon-Morris HB136A Horizontal Hydronic Unit Heater, 35,900 BTU/Hr.

Beacon/Morris® HB136A Horizontal Hydronic Unit Heater, 35,900 BTU/Hr. Output, Water Applications.

Features & Benefits:

  • Approved for steam or water applications.
  • Wall or ceiling mountable.
  • Serpentine style header.
  • Residential or commercial applications.
  • 20-gauge die-formed steel casing.
  • Lead-free, chromate free, electrostatically applied paint finish.
  • Heavy drawn seamless copper tubing elements and headers.
  • Cast bronze pipe connection saddles.
  • Aluminum fins.
  • All units are factory tested.
  • Multiple motor types available: open-drip, totally enclosed, explosion proof.
  • Multiple supply voltages available.
  • Fan blades are factory balanced aluminum hub type.
  • Spark-proof blades.
  • Quiet operation.

Technical Details:

Product Specification
BRAND Beacon/Morris®
MANUFACTURER MODEL NUMBER HBA136
TYPE Horizontal Hydronic
OUTPUT (BTU/Hr) 2 LB STEAM 60°F ENTERING AIR - - -
OUTPUT (BTU/Hr) HOT WATER 200°F IN 60°F ENTERING AIR 26,900
LENGTH INCHES 10-15/16"
WIDTH INCHES 20-1/2"
HEIGHT INCHES 18-1/2"
WEIGHT Lbs. 31 Lbs.

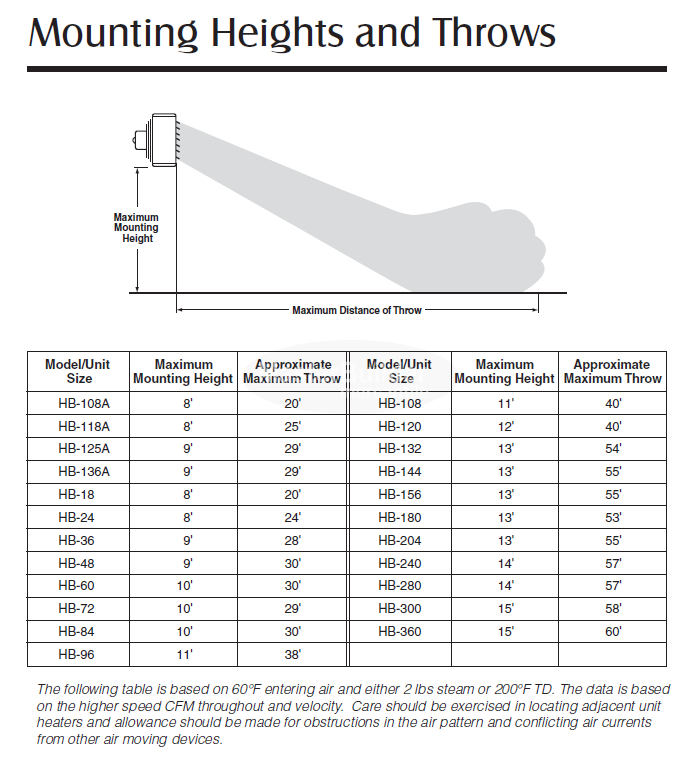

MAXIMUM MOUNTING HEIGHT (FEET) 9'
HEAT THROW FEET 29'
CFM (HIGH) 850
RPM (HIGH) 1000
VOLTAGE VARIES
PHASE VARIES
WATER FLOW (GPM) 3.6
AMPS (High Speed) 1.4
PRESSURE DROP FT./H20 3.0
FAN DIAMETER INCHES 10"
OUTLET VELOCITY FPM 550
FINAL AIR TEMPERATURE °F (HOT WATER) 99° - 100° F
FINAL AIR TEMPERATURE °F (STEAM) - - -
COLOR Grey
ASSEMBLY Assembled
CONSTRUCTION Steel
APPROVALS ETL, ETLc
LIMITED WARRANTY (YEARS) 1


Technical Documentation:

Beacon-Morris HB Series: Specification Submittal
Beacon-Morris HB Series: Installation and Maintenance Instructions
Beacon-Morris HB Series: Catalog
