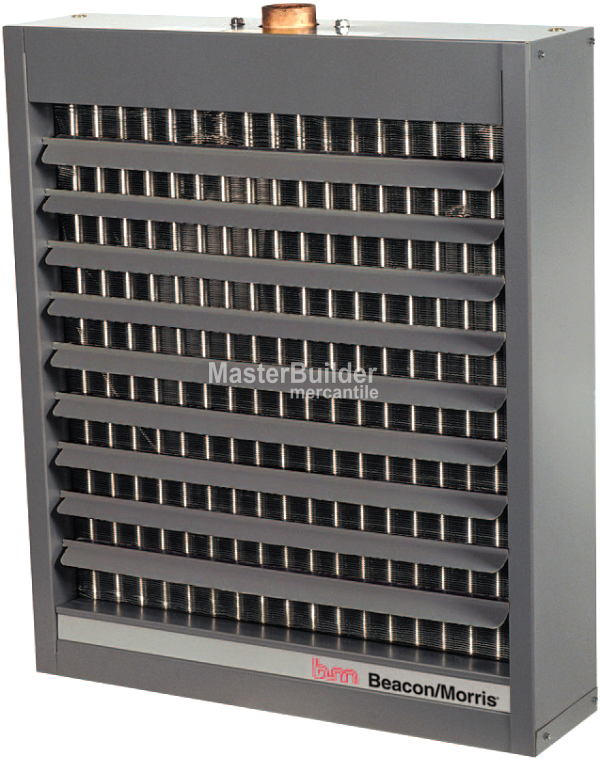

Beacon-Morris HB072 Horizontal Hydronic Unit Heater, 72,000 BTU/Hr.

Beacon MorrisSKU: MES-HBB072

Price:
Sale Price$ 42,501.00 MXN
Description

Beacon-Morris HB072 Horizontal Hydronic Unit Heater, 72,000 BTU/Hr.

Beacon/Morris® HB072 Horizontal Hydronic Unit Heater, 72,000 BTU/Hr. Output (Steam) | 52,300 BTU/Hr. Output (Water), Steam or Water Applications.

Features & Benefits:

  • Approved for steam or water applications.
  • Wall or ceiling mountable.
  • Coil style header.
  • Residential or commercial applications.
  • 20-gauge die-formed steel casing.
  • Lead-free, chromate free, electrostatically applied paint finish.
  • Heavy drawn seamless copper tubing elements and headers.
  • Cast bronze pipe connection saddles.
  • Aluminum fins.
  • All units are factory tested.
  • Multiple motor types available: open-drip, totally enclosed, explosion proof.
  • Multiple supply voltages available.
  • Fan blades are factory balanced aluminum hub type.
  • Spark-proof blades.
  • Quiet operation.

Technical Details:

Product Specification
BRAND Beacon/Morris®
MANUFACTURER MODEL NUMBER HBB072
TYPE Horizontal Hydronic
OUTPUT (BTU/Hr) 2 LB STEAM 60°F ENTERING AIR 72,000
OUTPUT (BTU/Hr) HOT WATER 200°F IN 60°F ENTERING AIR 52,300

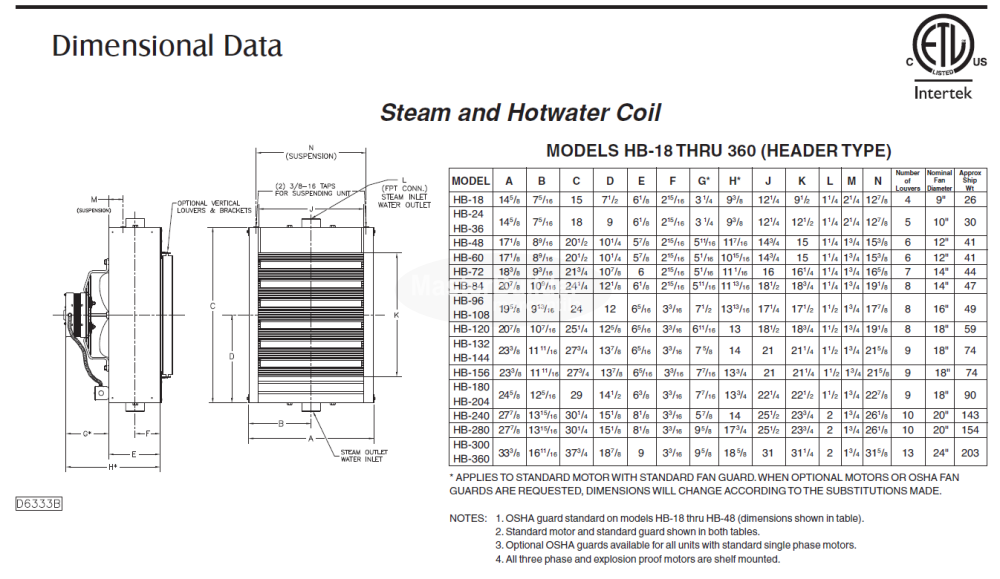

LENGTH INCHES 18-3/8"
WIDTH INCHES 11-1/16"
HEIGHT INCHES 21-3/4"
WEIGHT Lbs. 44 Lbs.

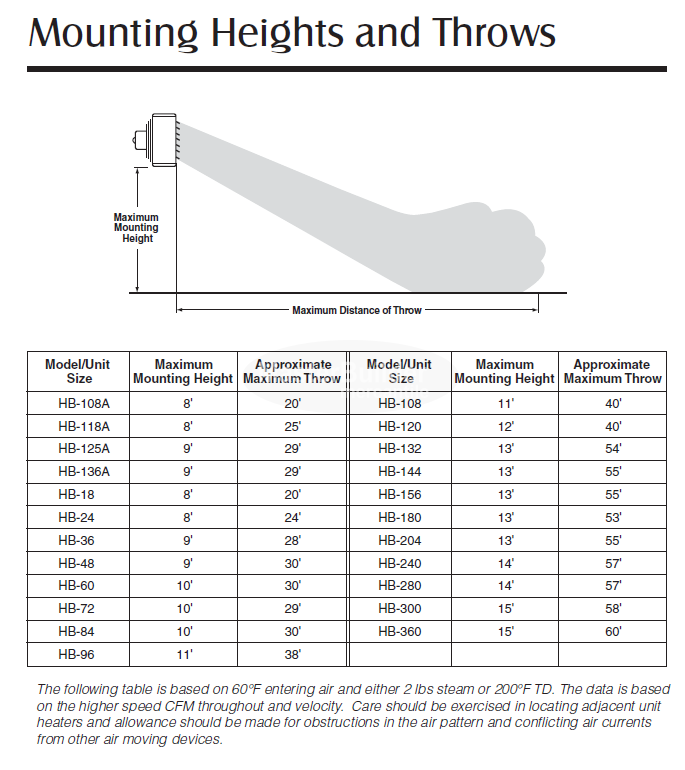

MAXIMUM MOUNTING HEIGHT (FEET) 10'
HEAT THROW FEET 30'
CFM (HIGH) 1100
RPM (HIGH) 1000
VOLTAGE VARIES
PHASE VARIES
WATER FLOW (GPM) 5.3
AMPS (High Speed) 1.4
PRESSURE DROP FT./H20 0.23
FAN DIAMETER INCHES 14"
OUTLET VELOCITY FPM 800
FINAL AIR TEMPERATURE °F (HOT WATER) 104° F - 106° F
FINAL AIR TEMPERATURE °F (STEAM) 120° - 123° F
COLOR Grey
ASSEMBLY Assembled
CONSTRUCTION Steel
APPROVALS ETL, ETLc
LIMITED WARRANTY (YEARS) 1


Technical Documentation:

Beacon-Morris HB Series: Specification Submittal
Beacon-Morris HB Series: Installation and Maintenance Instructions
Beacon-Morris HB Series: Catalog
