Description

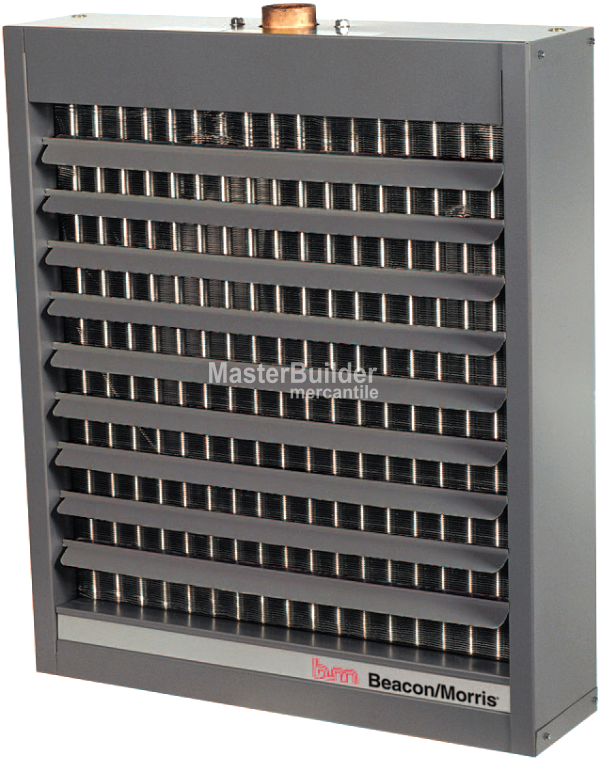

Beacon/Morris® HB036 Horizontal Hydronic Unit Heater, 36,000 BTU/Hr. Output, Steam or Water Applications.
Features & Benefits:
- Approved for steam or water applications.
- Wall or ceiling mountable.
- Coil style header.
- Residential or commercial applications.
- 20-gauge die-formed steel casing.
- Lead-free, chromate free, electrostatically applied paint finish.
- Heavy drawn seamless copper tubing elements and headers.
- Cast bronze pipe connection saddles.
- Aluminum fins.
- All units are factory tested.
- Multiple motor types available: open-drip, totally enclosed, explosion proof.
- Multiple supply voltages available.
- Fan blades are factory balanced aluminum hub type.
- Spark-proof blades.
- Quiet operation.
Technical Details:
Product Specification | |
BRAND | Beacon/Morris® |
MANUFACTURER MODEL NUMBER | HBB036 |
TYPE | Horizontal Hydronic |
OUTPUT (BTU/Hr) 2 LB STEAM 60°F ENTERING AIR | 36,000 |
OUTPUT (BTU/Hr) HOT WATER 200°F IN 60°F ENTERING AIR | 26,100 |

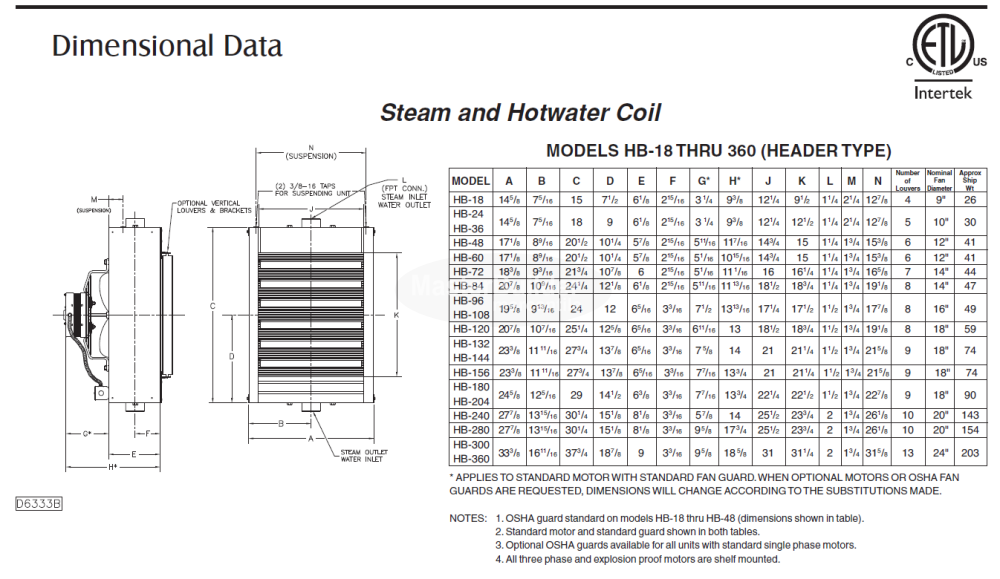

LENGTH INCHES | 14-5/8" |
WIDTH INCHES | 9-3/8" |
HEIGHT INCHES | 18" |
WEIGHT Lbs. | 30 Lbs. |

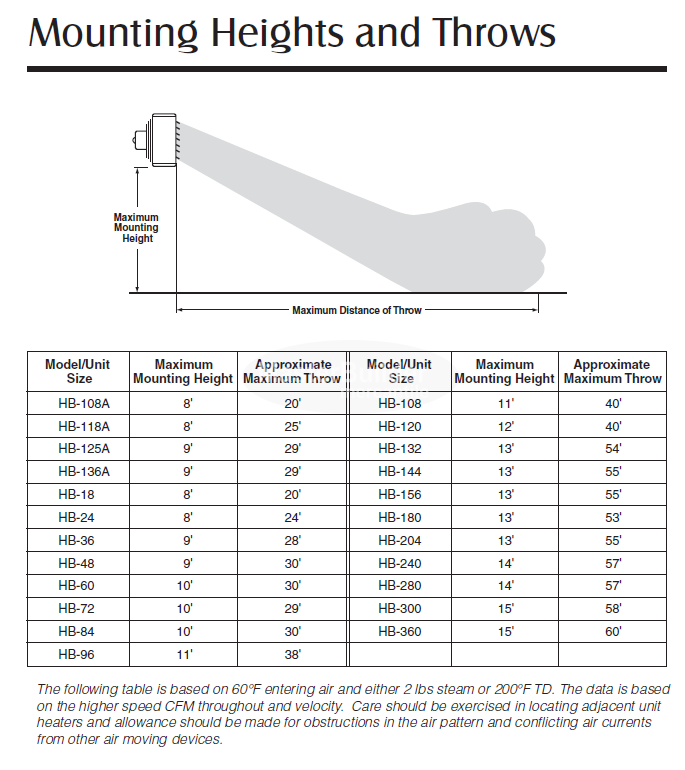

MAXIMUM MOUNTING HEIGHT (FEET) | 9' |
HEAT THROW FEET | 28' |
CFM (HIGH) | 550 |
RPM (HIGH) | 1550 |
VOLTAGE | VARIES |
PHASE | VARIES |
WATER FLOW (GPM) | 2.7 |
AMPS (High Speed) | 1.2 |
PRESSURE DROP FT./H20 | 0.09 |
FAN DIAMETER INCHES | 10" |
OUTLET VELOCITY FPM | 550 |
FINAL AIR TEMPERATURE °F (HOT WATER) | 103° F |
FINAL AIR TEMPERATURE °F (STEAM) | 119° - 120° F |
COLOR | Grey |
ASSEMBLY | Assembled |
CONSTRUCTION | Steel |
APPROVALS | ETL, ETLc |
LIMITED WARRANTY (YEARS) | 1 |
Technical Documentation:
Beacon-Morris HB Series: | Specification Submittal |
Beacon-Morris HB Series: | Installation and Maintenance Instructions |
Beacon-Morris HB Series: | Catalog |
