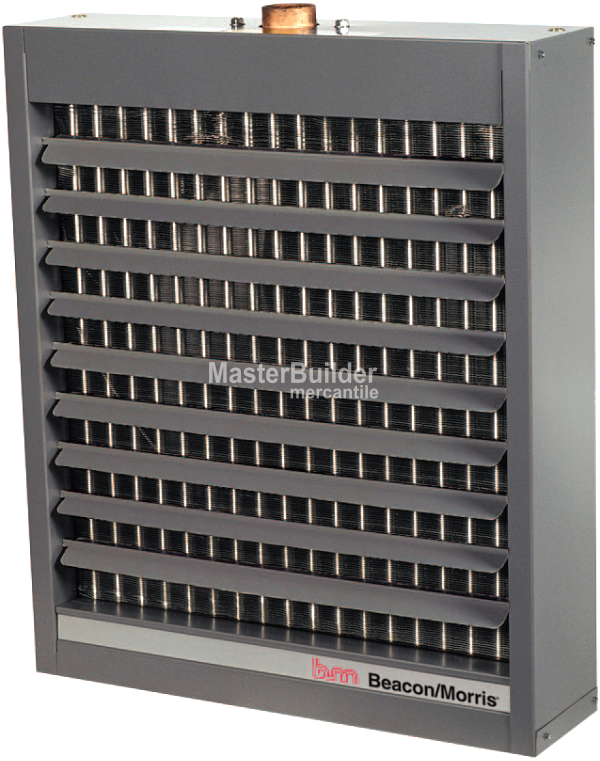

Beacon-Morris HB018 Horizontal Hydronic Unit Heater, 18,000 BTU/Hr.

Beacon MorrisSKU: MES-HBB018

Price:
Sale Price$ 24,551.00 MXN
Description

Beacon-Morris HB018 Horizontal Hydronic Unit Heater, 18,000 BTU/Hr.

Beacon/Morris® HB018 Horizontal Hydronic Unit Heater, 18,000 BTU/Hr. Output, Steam or Water Applications.

Features & Benefits:

  • Approved for steam or water applications.
  • Wall or ceiling mountable.
  • Coil style header.
  • Residential or commercial applications.
  • 20-gauge die-formed steel casing.
  • Lead-free, chromate free, electrostatically applied paint finish.
  • Heavy drawn seamless copper tubing elements and headers.
  • Cast bronze pipe connection saddles.
  • Aluminum fins.
  • All units are factory tested.
  • Multiple motor types available: open-drip, totally enclosed, explosion proof.
  • Multiple supply voltages available.
  • Fan blades are factory balanced aluminum hub type.
  • Spark-proof blades.
  • Quiet operation.

Technical Details:

Product Specification

BRAND Beacon/Morris®
MANUFACTURER MODEL NUMBER HBB018
TYPE Horizontal Hydronic
OUTPUT (BTU/Hr) 2 LB STEAM 60°F ENTERING AIR 18,000
OUTPUT (BTU/Hr) HOT WATER 200°F IN 60°F ENTERING AIR 13,050

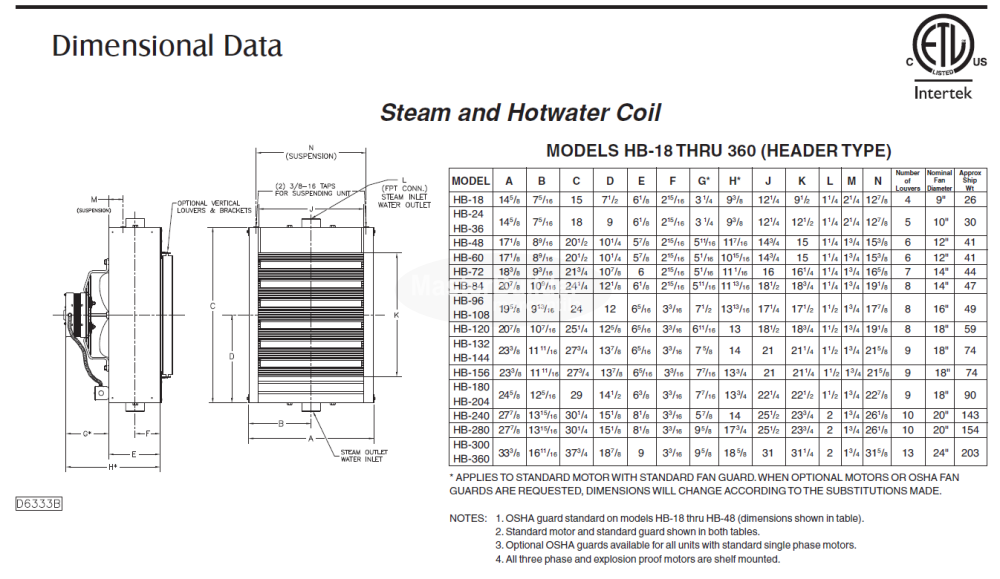

LENGTH INCHES 14-5/8"
WIDTH INCHES 9-3/8"
HEIGHT INCHES 15"
WEIGHT Lbs. 26 Lbs.

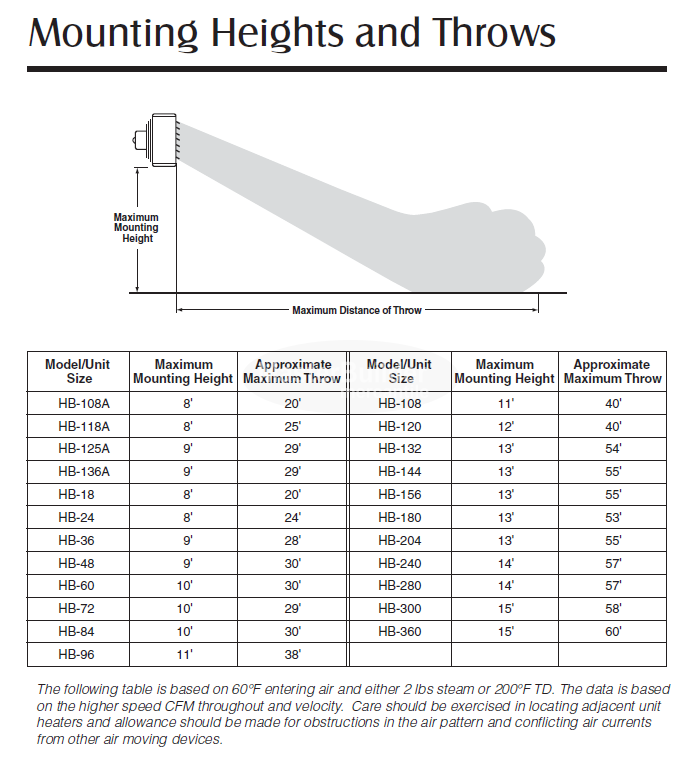

MAXIMUM MOUNTING HEIGHT (FEET) 8'
HEAT THROW FEET 20'
CFM (HIGH) 395
RPM (HIGH) 1550
VOLTAGE VARIES
PHASE VARIES
WATER FLOW (GPM) 1.3
AMPS (High Speed) 0.8
PRESSURE DROP FT./H20 0.005
FAN DIAMETER INCHES 9"
OUTLET VELOCITY FPM 395
FINAL AIR TEMPERATURE °F (HOT WATER) 94° - 99° F
FINAL AIR TEMPERATURE °F (STEAM) 102° - 105° F
COLOR Grey
ASSEMBLY Assembled
CONSTRUCTION Steel
APPROVALS ETL, ETLc
LIMITED WARRANTY (YEARS) 1



Technical Documentation:

Beacon-Morris HB Series: Specification Submittal
Beacon-Morris HB Series: Installation and Maintenance Instructions
Beacon-Morris HB Series: Catalog
