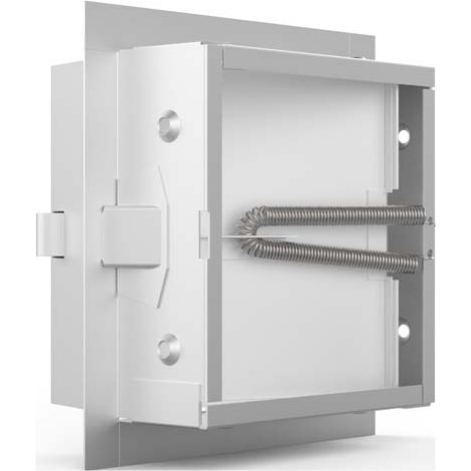

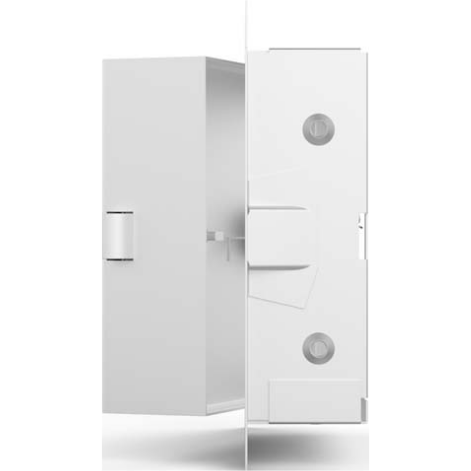

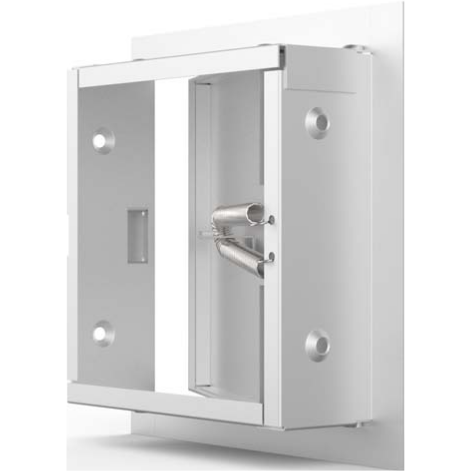

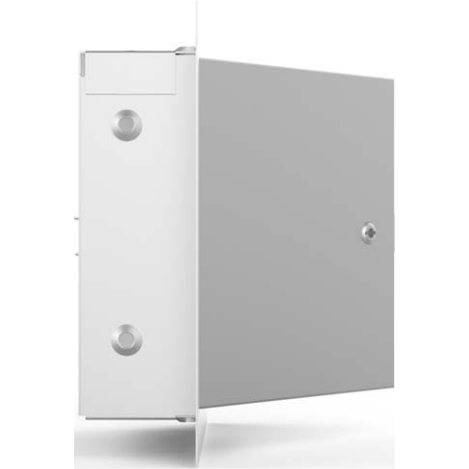

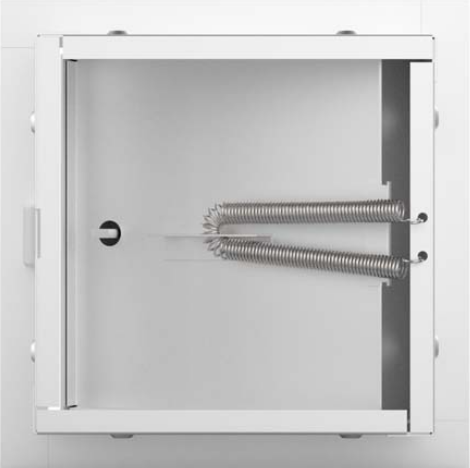

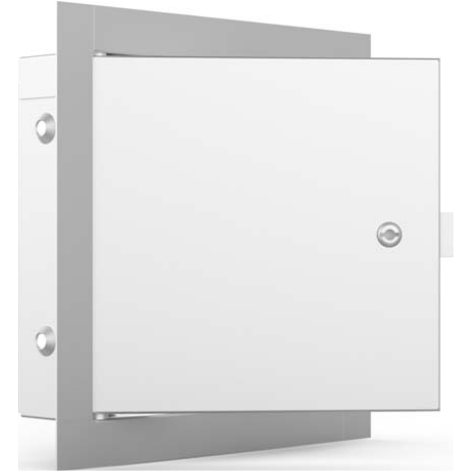

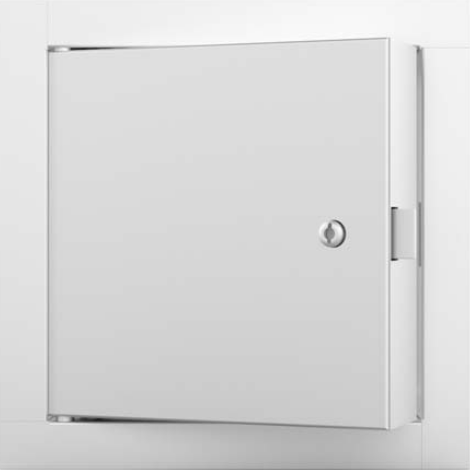

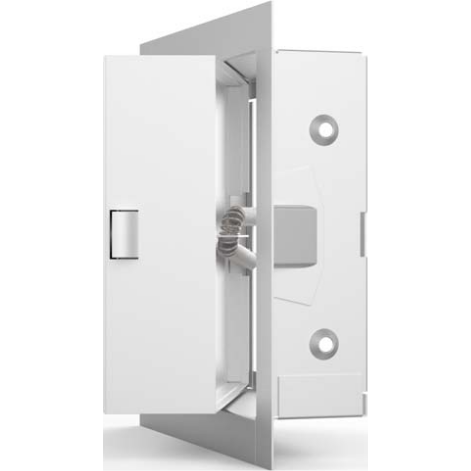

Acudor FW-5050-8x8 - 8" x 8" Ceiling & Wall Fire Rated Prime Coated Steel Access Door

AcudorSKU: ACU-FW5050-8x8-WCPC

Price:
Sale Price$ 3,268.00 MXN
Stock:
In Stock
Description

Acudor FW-5050 Ceiling & Wall Fire Rated Prime Coated Steel Access Door

Acudor FW-5050-8x8 - 8" x 8" Ceiling & Wall Fire Rated Prime Coated Steel Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com
Features & Benefits:
  • Insulated Door Panel
  • Concealed hinge
  • Self-latching / Self-closing
  • Self-closing & self-latching door mechanism
  • Inside latch release

Door Specifications:

  • Material: 20 gauge door, 16 gauge mounting frame.
  • Door filled with 2" thick fire rated insulation.
  • Flush to frame with reinforced edges, flanged to be 1" wide.
  • Hinge: Concealed.
  • Fire Rating (Walls): UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label. Warnock Hersey International 3 hour rated in a non-combustible ceiling. Max size 24" x 36".
  • Standard Latch: Universal self latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
  • Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

      Technical Documentation:

      Acudor FW5050 Wall Fire Rated Prime Coated Steel Access Door Product Page: Click Here.

      Acudor FW5050 Wall Fire Rated Prime Coated Steel Access Door Specification Submittal: Click Here.
