Description

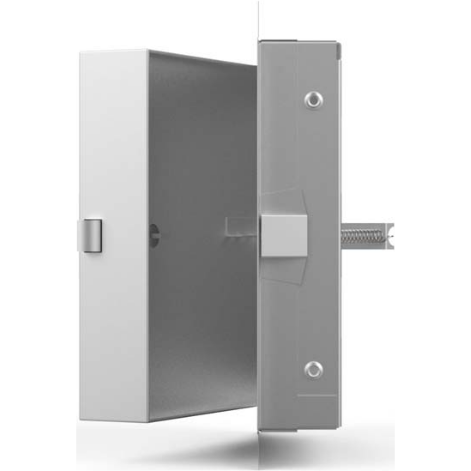

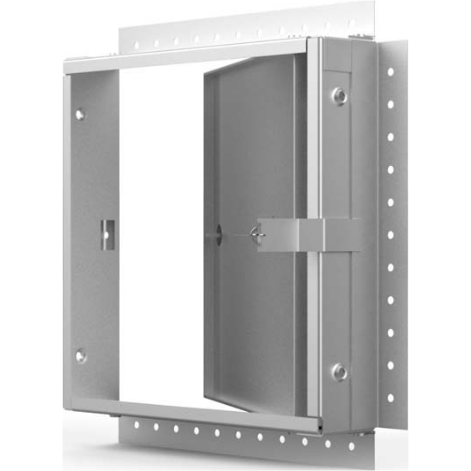

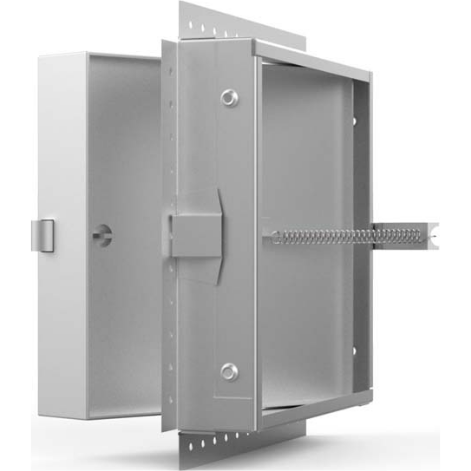

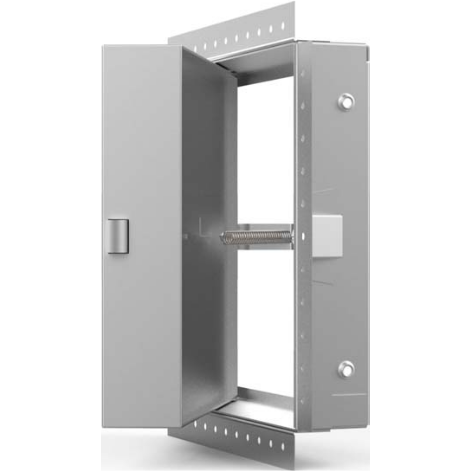

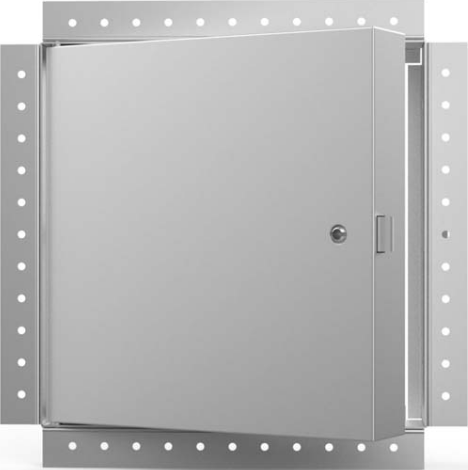

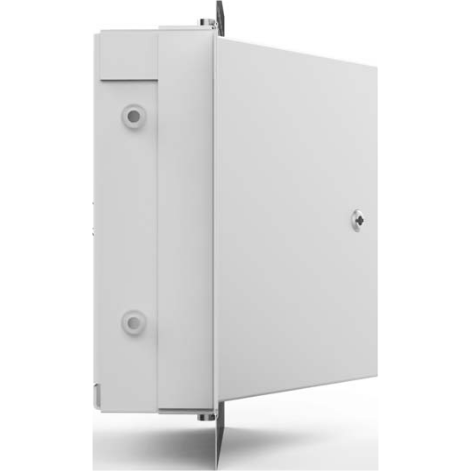

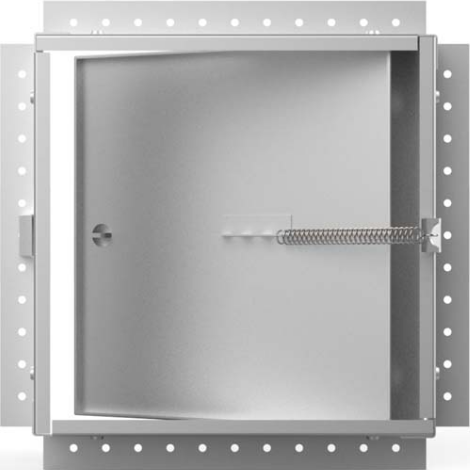

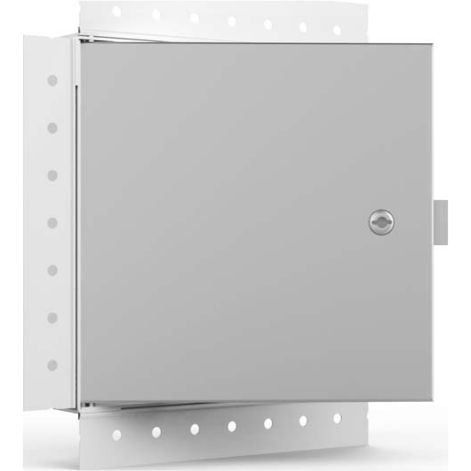

Acudor FW-5050-DW-12x12 - 12" x 12" Ceiling & Wall Fire Rated Prime Coated Steel Access Door with Drywall Taping Bead
Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com
Features & Benefits:
- Insulated Door Panel
- Concealed hinge
- Self-latching / Self-closing
- Self-closing & self-latching door mechanism
- Inside latch release
- Drywall taping bead flange
Door Specifications:
- Material: 20 gauge door, 16 gauge mounting frame.
- Door filled with 2" thick fire rated insulation.
- Flush to frame with reinforced edges, flanged to be 1" wide.
- Hinge: Concealed.
- Fire Rating (Walls): UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label. Warnock Hersey International 3 hour rated in a non-combustible ceiling. Max size 24" x 36".
- Standard Latch: Universal self latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
- Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.
Technical Documentation:
Acudor FW5050 Wall Fire Rated Prime Coated Steel Access Door Product Page: Click Here.
Acudor FW5050 Wall Fire Rated Prime Coated Steel Access Door Specification Submittal: Click Here.
