Acudor ADWT-18x18 - 18" x 18" Prime Coated Airtight / Watertight Access Door

AcudorSKU: ACU-ADWT-18x18-PC

Price:
Sale Price$ 8,856.00 MXN
Description

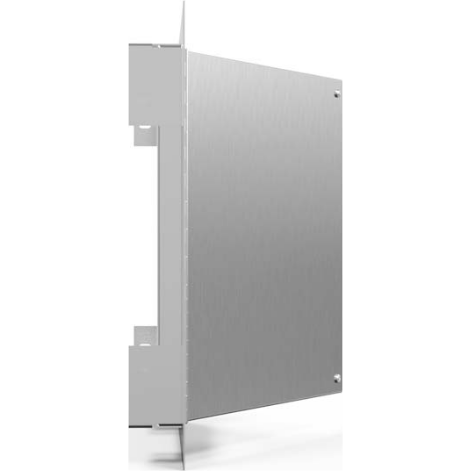

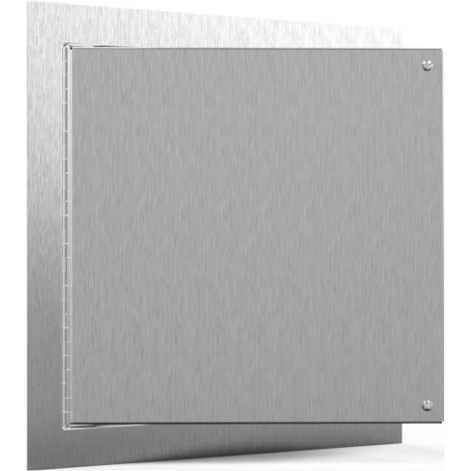

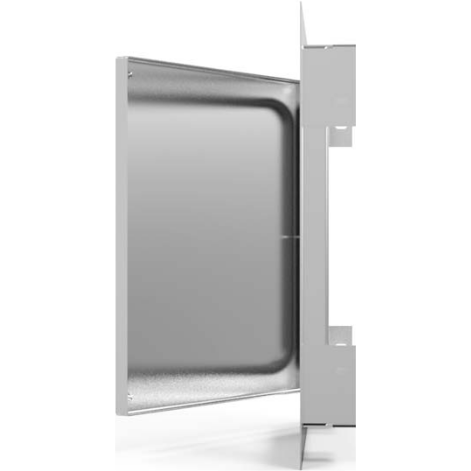

Acudor ADWT Airtight / Watertight Access Door

Acudor ADWT-18x18 - 18" x 18" Prime Coated Airtight / Watertight Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

  • This access door is ideal for use in laboratories, clean rooms, operating rooms, etc where an airtight / watertight seal is required.

Features & Benefits:

  • ADWT is a flush access door that has been tested for air infiltration and water penetration.
  • Door and Frame are fully welded.
  • Continuous Bulb Trim Gasket.
  • Continuous Stainless Steel Piano Hinge.
  • Air Infiltration: Less than 0.01 cfm/sq foot - ASTM E 283
  • Water Penetration: no leakage at 15.05 psf - ASTM E 331

Door Specifications:

  • Material: 16 gauge door, 16 gauge mounting frame.
  • Door: Flush to frame with reinforced edges.
  • Hinge: Continuous exposed stainless steel piano hinge.
  • Gasket: Continuous bulb trim seal.
  • Latch: Stainless Steel phillips head screw (standard)
  • Optional Latches: stainless steel allen head screws, stainless steel spanner head screws, torx, cylinder lock & key.
  • Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

    Technical Documentation:

    Acudor ADWT Airtight / Watertight Access Door Product Page: Click Here.
    Acudor ADWT Airtight / Watertight Access Door Specification Submittal: Click Here.
