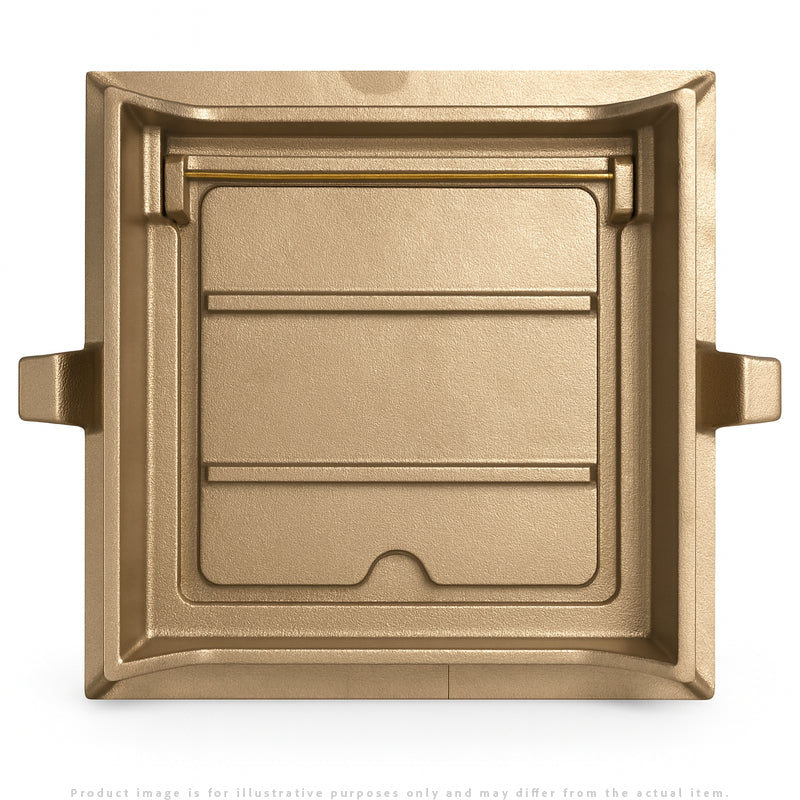

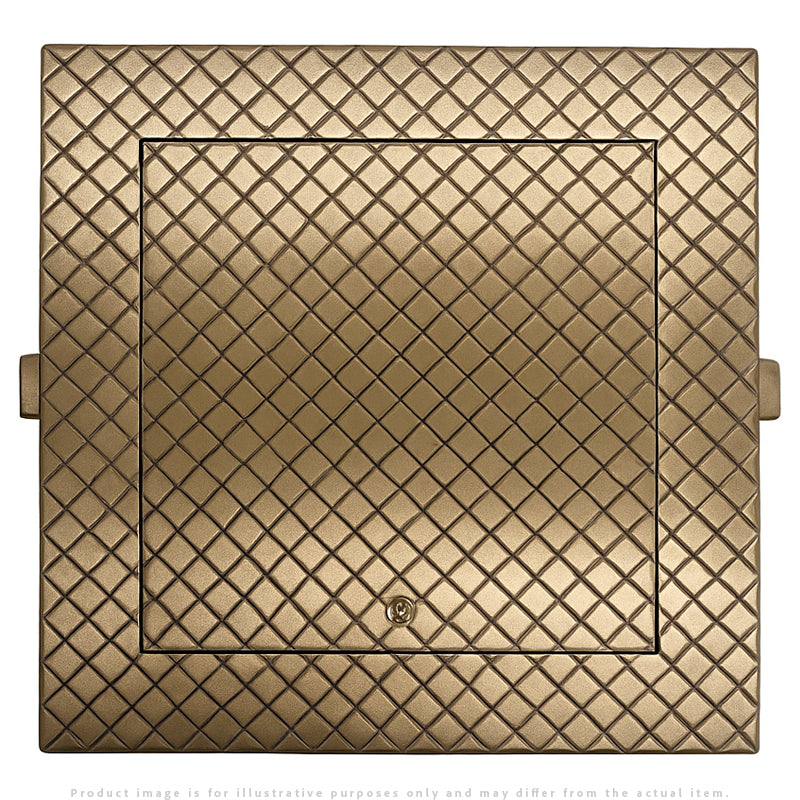

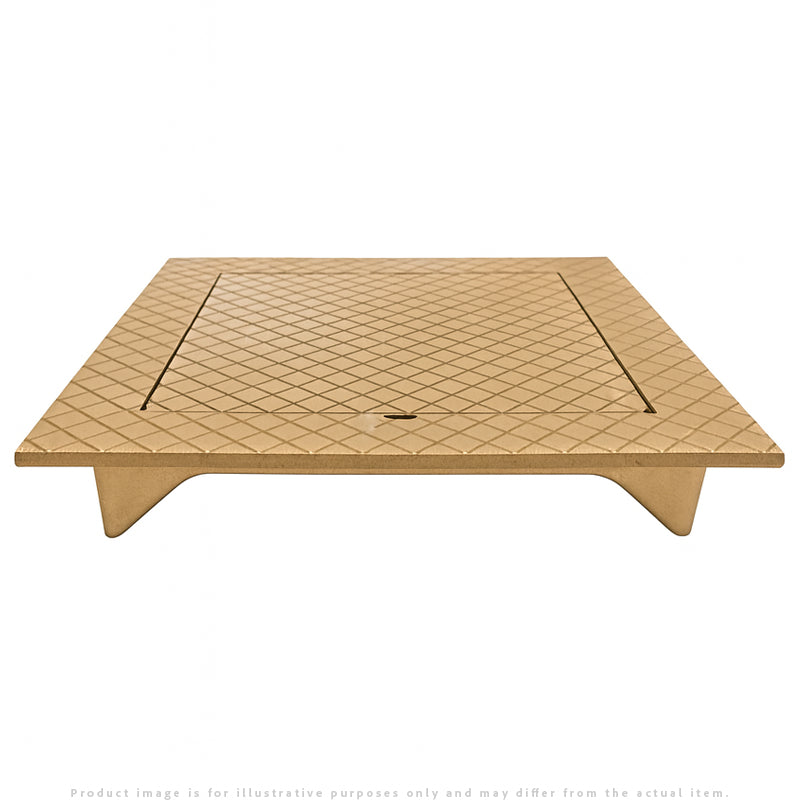

Zurn ZANB1461-12 12" x 12" Nickel Bronze Square Hinged Floor Access Panel

Zurn ZANB1461-12 12" x 12" Nickel Bronze Hinged Floor Access Panel

Product Overview

The Zurn ZANB1461-12 Floor Access Panel is a durable, hinged access solution designed for commercial plumbing, mechanical, and utility applications. Built from nickel bronze with a polished scoriated cover, this access panel combines strength with a clean, professional appearance.

Set flush with finished floors or walls, the ZANB1461-12 provides reliable access to concealed valves, pipes, and equipment while maintaining a low-profile design. Its hinged construction allows easy opening and secure closure, making it ideal for light-duty use in commercial, institutional, and multi-unit facilities.

Features & Benefits

• Flush installation – sits level with finished floor or wall for a clean look

• Nickel bronze polished cover – corrosion resistant and visually appealing

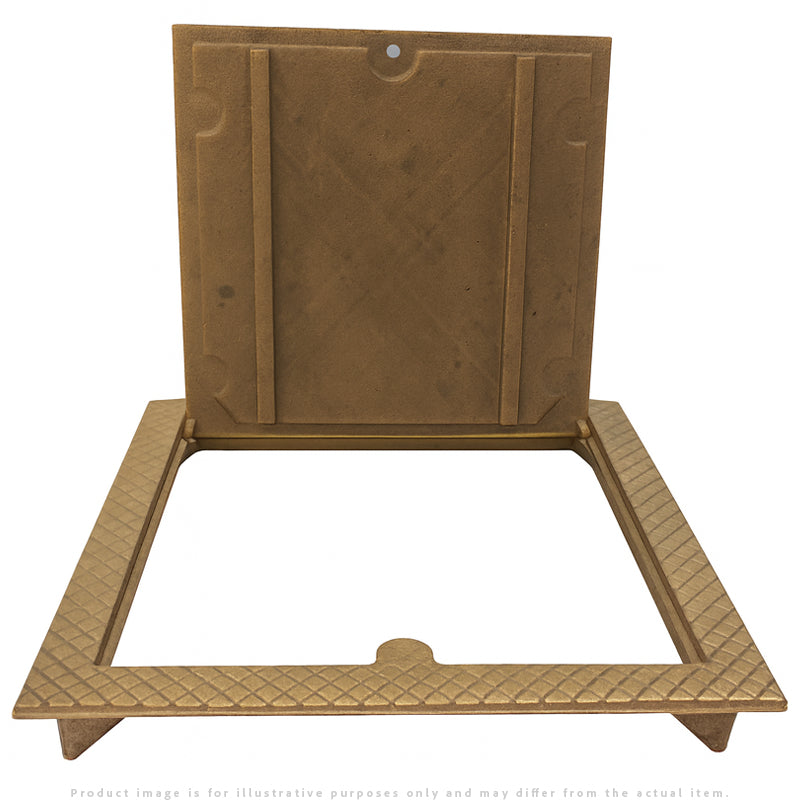

• Hinged design – allows quick, repeated access to concealed equipment

• Anchor lugs included – ensures secure installation in concrete or masonry

• Scoriated surface – improves traction for safer foot traffic when floor mounted

• Low-profile design – suitable for commercial and institutional light-duty applications

Specifications

• Model Number: ZANB1461-12

• Size: 12" × 12" (305 mm × 305 mm)

• Material: Nickel bronze with polished scoriated cover

• Frame: Secured frame with anchor lugs

• Installation: Flush mount for floor or wall access

• Weight: Approx. 11 lb (5 kg)

• Options Available:

  • Z1461 (Cast Iron, Dura-Coated)

  • ZAB1461 (Polished Bronze)

  • ZANB1461 (Polished Nickel Bronze)

  • -VP suffix (Vandal-proof screws)

Installation Tips

• Ensure opening dimensions match the 12" × 12" frame size before installation.

• Use anchor lugs for secure placement in concrete or masonry floors/walls.

• Install flush with finished surface for both safety and aesthetics.

• Select vandal-proof screws if tamper resistance is required.

• Follow local building codes and ADA requirements when installing in occupied spaces.

FAQs

Q: What is this panel used for?
It provides access to concealed valves, pipes, or mechanical equipment in commercial buildings.

Q: Can this be used in both floors and walls?
Yes, it is designed for flush installation in either location for light-duty applications.

Q: Is the surface slip-resistant?
Yes, the scoriated (textured) surface improves traction when floor mounted.

Q: What finish is included on the ZANB1461-12?
It features a nickel bronze polished cover, resistant to corrosion and wear.

Q: Does it come in other materials?
Yes, the Z1461 series is available in cast iron, bronze, or nickel bronze, depending on your project needs.
